Power Socket Tester UL498 Figure 129.2 No.14 AWG Test Pin Multi Sizes

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: Kingpo
Orzecznictwo: Calibration Certificate

Zapłata:

Minimum Order Quantity: 1
Cena: To be quoted
Szczegóły pakowania: bezpieczne opakowanie kartonowe lub pudełko ze sklejki
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000 Pieces/month
Skontaktuj się teraz

Szczegóły informacji

Place of origin: Guangdong,China(mainland) Standard: UL 498
High Light:

electrical socket tester

,

power socket tester

opis produktu

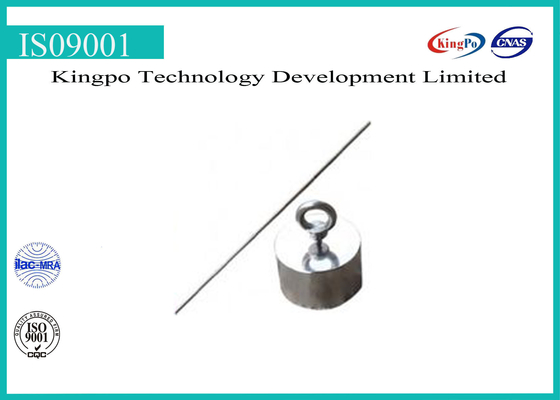

UL498 Figure 129.2 | No.14AWG Test Pin





American Standard UL498 plug and socket gauge
  Gauge drawing number standard number number name
1 Articulate probe with web stop Figure 9.1 UL 498 1
2 Probe figure 10.1 UL 498 1
3 Flat probe figure 31.1 UL 498 1
4 Reference plug
5 the simulation of plug tension device should a figure figure 69.1 UL 498 1 sets
6 Improper insertion test blades figure 94.1 UL 498 2
7 Test plug figure 105.1 UL 498 2
8 Test blade figure 105.2 UL 498 1
9 Receptacle test fixture figure 118.1 UL 498 1
10 Push out tool figure 118.3 UL 498 1
11 Bridge figure 118.5 UL 498 1
12 Test pin A figure 119.1 UL 498 1
13 Test pin B figure 119.2 UL 498 1
14 57g ground pin figure 119.3 UL 498 1
15 113g ground pin figure 119.4 UL 498 1
16 No.14AWG test pin figure 129.2 UL 498 1
17 Test probe figure 132.1 UL 498 1
18 Fixture for assembly security test figure 144.2 UL 498 1
19 Over size ground pin figure SD 13.2 UL 498 1
