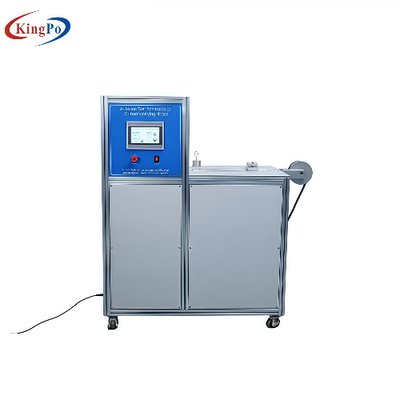

The Vacuum Current Carrying Hose Test Machine is a specialized testing apparatus designed to evaluate the durability, electrical safety, and mechanical performance of current-carrying hoses used in household vacuum cleaners and water-suction cleaning appliances, as per IEC 60335-2-2:2019 standards. This equipment ensures compliance with safety requirements for appliances with rated voltages not exceeding 250 V, including motorized cleaning heads and battery-operated devices.
| Parameter | Specification |
|---|---|
| Test Standard | IEC 60335-2-2:2019, Clause 21.104 (Hose Durability), Clause 23.3 (Internal Wiring) |
| Voltage Range | 0-250 V AC/DC, adjustable for single-phase and battery-operated appliances |
| Test Load | Configurable up to 10 kg (per IEC 60335-2-2 requirements) |
| Flexing Speed | 10-60 cycles/min, adjustable |
| Flexing Angle | ±90° (configurable for specific test requirements) |
| Cycle Count | 0-100,000 cycles, programmable with automatic stop |
| Hose Length Compatibility | 0.5-2.5 meters |
| Current Measurement | 0-16 A, accuracy ±0.5% |
| Abrasion Test Mechanism | Compliant with Clause 21.104, with adjustable abrasion surface |
| Control System | PLC-based with 7-inch touchscreen HMI |
| Data Output | USB, RS232, and Ethernet for test data export |
| Power Supply | 220-240 V, 50/60 Hz, single-phase |
| Dimensions | 1200 mm (L) x 800 mm (W) x 1500 mm (H) |
| Weight | Approximately 150 kg |
| Operating Environment | 5-40°C, 20-80% RH (non-condensing) |
| Safety Features | Emergency stop, overcurrent protection, and interlock system |
