1728L Capacity Corrosion Test Chamber with AC220V Power Supply and Temperature Control ±1℃ for Battery Testing Equipment

MOQ:	1
Cena £:	To be quoted
standardowe opakowanie:	Pakiet kartonu bezpieczeństwa lub sklejka
metoda płatności:	T/t

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia

CHINY

Nazwa handlowa

KingPo

Numer modelu

LT-1700L

Dokument

Zakres temperatur:

Zasilacz:

AC220V 400 kW 50 Hz

Podkreślić:

1728L Capacity Corrosion Test Chamber

AC220V Power Supply Corrosion Test Chamber

Temperature Control ±1℃ Battery Testing Equipment

Opis produktu

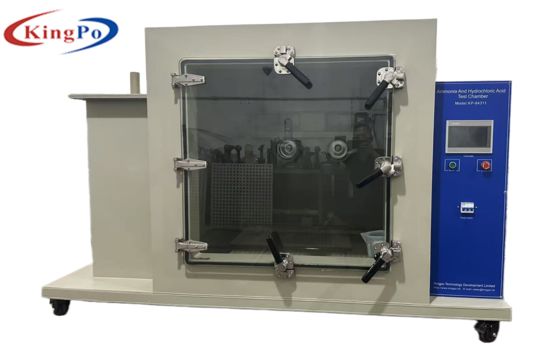

LT-1700L Toilet Hydrochloric Acid Ammonia Corrosion Test Chamber

Professional corrosion testing chamber designed for evaluating material resistance to hydrochloric acid and ammonia exposure under controlled conditions.

Performance Specifications

Temperature range: RT
Temperature control accuracy: ±1℃
Uniform temperature distribution: ±2.0℃
Test time: 0-999H M adjustable
Equipment placement space: 3000 * 2000 * 2000 mm (W * H * D)
Inner box size: W1200 * D1200 * H1200mm
Power supply: AC220V 400KW 50HZ
Ammonia concentration: 0.01-0.1% (volume percentage)
Hydrochloric acid concentration: 0.0001-0.001 (volume percentage)
Box material: PP
Internal volume: 1728L

Note: Performance measurements require temperature sensor stability for 30 minutes prior to measurement.

System Structure

Machine Materials

Inner/outer boxes: PP acid/alkali resistant material with thermal insulation foaming
Glass rotor flowmeter: Corrosion-resistant with precise control
Sealing joints/hardware: PP + Teflon + titanium alloy + 316L stainless steel
Door material: 12mm tempered glass

Waste Disposal System

40W large air volume inlet fan with electric ball valve switch
Large diameter spray pipe with R20 and filter cotton (90%+ exhaust filtration)

Heating System

Corrosion-resistant titanium alloy electric heating tube

Control System

PID controller with temperature control
Temperature accuracy: ±1.0℃
PT100*1 (dry ball) input signal
4-20MA temperature/humidity conversion output

Working Principle

Ammonia flow controlled via digital mass flow meter in PLC
Hydrochloric acid pumped via digital micro flow pump in PLC
Automatic shutoff when set values are reached

Installation Requirements

Power supply: AC220V MAX 10A (±5% voltage, ±1% frequency fluctuation)
Humidification water: Purified/distilled water (minimum 10L initial preparation)
Level, vibration-free surface with proper drainage
Separate space with good ventilation, away from flammable materials
Exhaust outlet must connect to outdoors

Power Supply Specifications

Specification	Value
Power Wiring	1￠2W220VAC 50/60HZ
Power Line Diameter	1.0～1.5m㎡ (for length ≤10m)

Operation Procedures

Power on sequence: User switch → Main power switch → Panel power
Set temperature, flow rate, and time parameters
Close door securely before operation
Initiate test via controller
Activate exhaust treatment (20-30 minutes) before product removal

Safety Precautions

WARNING:

Absolutely prohibited for explosive, flammable, or highly corrosive substances
Door must remain closed during operation to prevent gas leaks
Wear protective equipment (gloves, goggles) when handling chemicals
Proper grounding essential to prevent static hazards

Maintenance Requirements

Clean distribution room annually
Inspect/test safety devices regularly
Clean internal/external surfaces annually with detergent
Use dry, corrosion-resistant gloves for product removal

Included Accessories

Instruction manual
Bottom layer plate
Exhaust pipe
Bottle of glacial acetic acid

Troubleshooting Guide

Fault Condition	Possible Cause	Solution
Machine not powering on	Power supply abnormality	Check/reconnect power
Flow control failure	Loose connections	Check all joints
Controller malfunction	I/O board issue	Re-plug or contact manufacturer
