IEC60320-1 Coupler Heating Device
Szczegóły Produktu:
| Place of Origin: | China |
| Nazwa handlowa: | KingPo |
| Orzecznictwo: | Calibration Certificate |
| Model Number: | TR-4 |
Zapłata:
| Minimum Order Quantity: | 1 |
|---|---|
| Cena: | To be quoted |
| Szczegóły pakowania: | bezpieczne opakowanie kartonowe lub pudełko ze sklejki |
| Payment Terms: | T/T |
|
Szczegóły informacji |
|||
| Standard: | IEC60320-1 clause 18.2 and figure 13 | Power Supply: | AC120V, 50Hz or AC220V, 60HZ |
|---|---|---|---|
| 10A heat resistance appliance inlet: | Test 10A connector, test temperature 120℃ ± 2℃ | 10A very hot resistance appliance inlet: | Test 10A connector, test temperature 155℃± 2℃ |
| 16A very hot resistance appliance inlet: | Test 16A connector, test temperature 155℃ ± 2℃ | Coupler center distance: | Uniform arrangement byΦ175 circular |
| High Light: | power socket tester,hardness testing equipment |
||
opis produktu

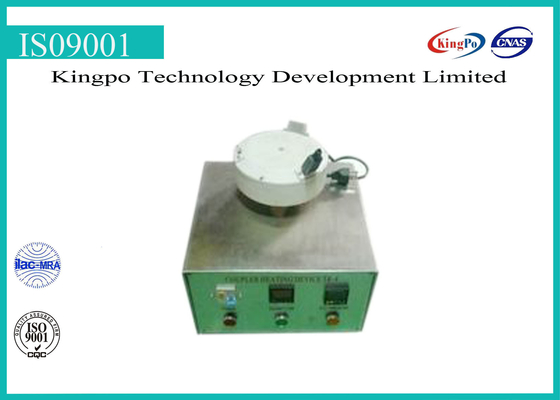

IEC60320-1 Clause 18.2 Figure 13 Coupler Heating Device
Product Information:
This device is designed according to the IEC60320-1,clause 18.2 figure 13 standard requirements . It is used for testing the heat resistance of coupler in hot conditions and very hot conditions, this device adopts temperature control, precise display and durable.
Technical Parameters:
| Model No. | TR-4 |
| Standard | IEC60320-1 clause 18.2 and figure 13 |
| Power Supply | AC120V, 50Hz or AC220V, 60HZ |
| Coupler inlets (as below): | |
| 10A heat resistance appliance inlet | Test 10A connector, test temperature 120℃ ± 2℃ |
| 10A very hot resistance appliance inlet | Test 10A connector, test temperature 155℃± 2℃ |
| 16A very hot resistance appliance inlet | Test 16A connector, test temperature 155℃ ± 2℃ |
| Test temperature | 0-200℃, can be preset |
| Test time | 0-99 hours and 59 minutes, can be preset |
| Coupler center distance | Uniform arrangement byΦ175 circular |
