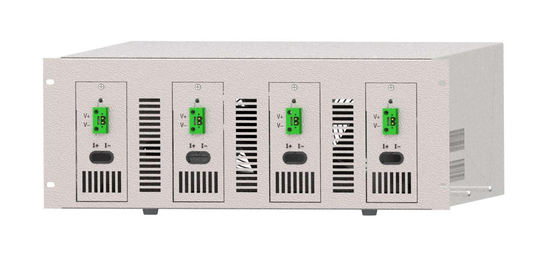

5V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester

Szczegóły Produktu:

Miejsce pochodzenia: CHINY
Nazwa handlowa: KingPo
Orzecznictwo: Calibration Certificate
Numer modelu: KP-5V25A

Zapłata:

Minimalne zamówienie: 1
Cena: to be quoted
Szczegóły pakowania: bezpieczny karton lub pudełko ze sklejki
Czas dostawy: 30 dni roboczych
Zasady płatności: T/T
Możliwość Supply: 10 jednostek / miesiąc
Skontaktuj się teraz

Szczegóły informacji
Napięcie WEJŚCIOWE: Jednofazowy 220 V ± 10% / 50 HZ ± 0,5 Moc wejściowa: 500W
Napięcie ładowania: Zakres napięcia ładowania: 0–4,5 V prądu stałego, najwyższe napięcie akumulatora wynosi 4,5 V. Napięcie rozładowania: Zakres napięcia rozładowania: 4,5 1,8 V DC, najwyższe napięcie akumulatora 4,5 V.
Podkreślić:

Rodzaj informacji zwrotnych Badanie pojemności baterii

,

Wysokiej precyzji badacz pojemności baterii

,

Badanie pojemności baterii 4ch

opis produktu

Kingpo Technology Development Limited File code
version A
Making date 2019.4.4
Total 4 pages The first page







5V25A(4ch)High precision and energy saving(Feedback type)Battery capacity tester

BTS EC525-4-A





Product manuals



5V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 0





















Product feature:

  • Modular design, a single point of control technology, easy expansion, production to maintain high efficiency;
  • Channel segregation and parallel technology convenient free combination test applied to various occasions；
  • Charge and discharge power factor of 0.98, charge and discharge efficiency % 70 (Max. 80%);
  • A variety of charge and discharge protection function, reduce the battery production accidents;
  • Discharge energy supply other charging energy channels or giving back to the power grid, fever of equipment cost greatly reduce the energy consumption;
  • Equipment accuracy better than 0.1%, data recording time / 1 second, software powerful function, friendly man-machine interface;
  • Four wire interface, realize the wide range of voltage, current adjustment, suitable for all kinds of batteries;
Kingpo Technology Development Limited file code
version A
making date 2019.4.4
Total 7 pages The second page



  • Equipment description

BTS EC5 series battery points is designed primarily for power batteries, the tester system can meet the demand of power batteries of various performance tests.The device has the characteristics of high power, high precision, high performance, for 1-4.5 V (voltage), etc. Various specifications between 0.3-25 A battery charging and discharging test and points.

BTS EC525 -4 – A

5V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 15V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 25V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 35V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 45V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 55V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 65V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 75V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 85V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 95V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 105V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 115V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 12

5V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 13Design version

5V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 14Channel number

Current range

Voltage range5V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 15

Energy feedback form

Battery test system5V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 16



二,Product specifications and requirements

Equipment model BTSEC525-4-A
Input voltage Single phase220V±10%/50HZ±0.5
Input power 500W
Control method single point of control & FCL control
Jig form According to the customer request
communication Interface RJ45
Output channel number 4CH/single
Channels in parallel Support < 4 ch in parallel
installation Frame-type multilevel Single cabinet: 2 layer / 8 ch 4/16 ch
Charging voltage Charging voltage range: DC 0-4.5 V, the highest battery voltage of 4.5 V
Discharge voltage Discharge voltage range: 4.5 1.8 V DC, highest battery voltage of 4.5 V
Charging current Charging current range: DC 0.3-25 a, maximum current 25 a
Discharging current Discharge current range: DC 0.3-25 a, maximum current 25 a
Voltage accuracy ±(0.1%RD+0.1%FS)
Current accuracy ±(0.1%RD+0.1%FS)
voltage resolution 1mV The equipment in the test or set voltage, the smallest unit used
Voltage stability ≤0.2%
Current resolution 1mA When testing or set the current equipment, the use of the smallest unit
Current stability ≤0.2%
Power output range 0.1～Pmax = Vmax * Imax
Charging efficiency %70(Max 80%)
Discharging efficiency feedback %70(Max 82%)
Precision power ±(0.1%RD+0.1%FS)
Power resolution 0.1w
Power stability ≤0.2%
Current response time When current in a hardware response time: 200 ms or less
Time setting range Any setting, 0-9999 minutes time units of h, min respectively, s optional, resolution of 1 s
Time accuracy ≤±0.1%
Record way Recharge record time, discharge time, static voltage change, current change and record time record
Record frequency Minimum of 1 second record data at a time
Charging mode Constant flow pressure limiting, constant current constant voltage
Charge cut-off condition Voltage, current, time and capacity
Discharging mode Constant current
Discharging cut-off condition Voltage, current, time and capacity
Protective function

Abnormal data recovery;

The battery reverse connect protection function;

Software over-voltage, under-voltage, over current protection, owe flow, capacity, voltage and current protection range of values can be set, after the protection can be prompt and records;

Power supply module temperature is too high;

Abnormal newsletter；




Single cycle work steps More than 64 steps
Continuous working time Equipment power should satisfy all channels to full capacity, long continuous operation
Equipment noise Less than 60 db
Circuit structure Modular structure design, easy installation and maintenance
software

SQL database records, the project not less than the voltage, current, time and capacity, energy, etc., and the corresponding curve, can be output into EXCEL or JPEG files;With on-demand set up automatic derivative according to function.

Provide lifetime free software upgrade
Using environment Altitude does not exceed 1000 m;During a run around the air temperature 15 ℃ ~ 35 ℃;Humidity < 85%;Slope < 5%;Use site must not have explosion danger medium, ambient medium could not a corrosive action on metals, and damage the insulation of harmful gases and conductive hostage.
Equipment maintenance Non-professionals, do not open the case.Operators should be regular inspection on equipment joint, to prevent the poor contact.
Equipment size and weight Size 483*445*188mm；weight:≤16KG；
Transportation Cars, boats, planes, trains and other transport, should be rain during the process of transportation, loading and unloading of civilization.


三,Equipment configuration and standard in general

1,Equipment in appearance:Dark gray.

2,Equipment attached with accessories:

number name quality Submit time
1 Equipment factory inspection report 1 set/sets delivery
2 Equipment operation instruction 1 set delivery
3 Packing list and product certification 1 set/sets delivery
4 Ethernet cable 1 set/sets delivery

















四,Service and support

1,Expiration period 1 year free maintenance, upgrading and training, life-long maintenance.

2,Shelf life after the maintenance charge of raw materials costs, lifetime free software upgrade;

3,The early stage of the equipment debugging and acceptance in Shenzhen, warranty period 48 h to provide maintenance services.

五,Packing, transportation, storage



1,packing:Packing with logo, product name, model, manufacturers, quality department inspection certificates, manufacturing date, etc.

2,transportation:This packing is suitable with cars, boats, planes, trains, such as transportation, should be rain during the process of transportation, loading and unloading of civilization.

3,storage:When product is not used, should be put in boxes, storage environment temperature and relative humidity shall comply with the requirements of the product, there should be no corrosion of the warehouse

Corrosion gas or products, and there is no strong mechanical vibration, impact and strong magnetic field.Packing should be at least 20 cm high from the ground, do not let water immersion.

If the storage time is too long (more than one year) should be checked by professionals to rear can use.





六,Product size and shape









5V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 17

5V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 18







Above the graph : single 4 ch size











5V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 195V25A（4ch）High precision and energy saving（Feedback type）Battery capacity tester 20









                              Above the graph : single cabinet: 2 layer / 8 ch size
